MKP高压吸收IGBT电容器530VAC 30UF

采用金属化聚丙烯薄膜进行无感式卷绕，特殊喷金工艺，迈拉胶带、铝外壳或不锈钢外壳封装，阻燃环氧树脂灌封，铜螺母或铜螺栓引出。
具有高频纹波吸收能力，高dv/dt，频率特性好，杂散电感小。

适用于高频开关电源中滤波、吸收、隔直、谐振电路。用于EMI电 路，如高频逆变焊机、UPS、电动汽车等。在电力电子领域中，起到隔直、母线侧高次谐波滤除、IGBT吸收保护、阻尼、箝位等作用。

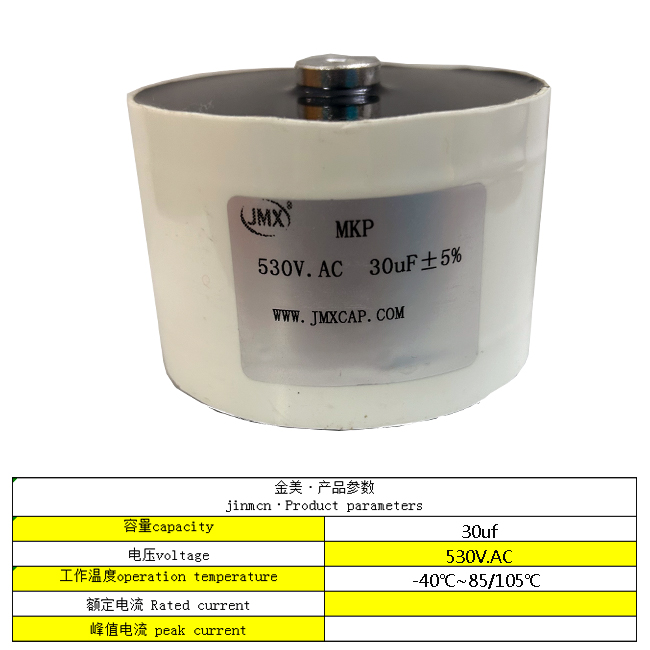

MKP high-voltage absorption IGBT capacitor 530VAC 30UF

Using metalized polypropylene film for non inductive winding, special gold spraying process, Mylar tape, aluminum or stainless steel shell packaging, flame-retardant epoxy resin encapsulation, copper nut or copper bolt lead out.

Has high-frequency ripple absorption ability, high dv/dt, good frequency characteristics, and small stray inductance.
Suitable for filtering, absorbing, isolating, and resonant circuits in high-frequency switching power supplies. Used for EMI circuits, such as high-frequency inverter welding machines, UPS, electric vehicles, etc. In the field of power electronics, it plays a role in isolating direct current, filtering out high-order harmonics on the busbar side, absorbing and protecting IGBT, damping, clamping, and so on.
