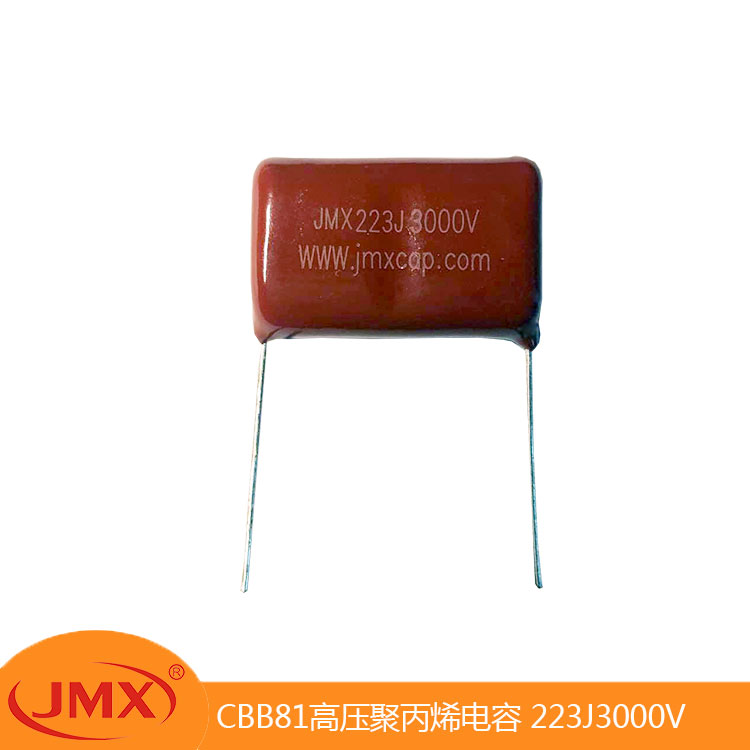

CBB81电容器是以金属化聚丙膜为介质，铝箔采用无感卷绕，环氧树脂包封，镀锡铜包钢线（CP线）径向引出。和普通聚丙烯电容的差别，就是聚丙烯和铝箔串联后卷绕，这也是它能耐高压的原因。

CBB81电容特点：

由于它耐高压、高频，大电流，已经被广泛应用于各种仪器仪表、等家用电器中，可作直流脉动和交流降压用，特别适用于各种类型的电子整流器和节能灯线路中，还可以各类接触器触点的高压电势吸收线路。

CBB81电容是薄膜电容的一种，是无极性高压金属聚丙知烯薄膜介质高压电容器

CBB81电容又称高压电容、吸收电容、高频电容
以金属化聚丙膜为介质，铝箔为电极采用无感卷绕，环氧树脂包封，镀锡铜包钢线（CP线）径向引出
CBB81电容具有内串式结构道，高频损耗小，过电流能力强，绝缘电阻高，寿命长，温度特性稳定，损耗角正切随工作频率升高而减小等特点
CBB81电容，CBB薄膜介质，无极性;
CBB81电容技术指标内：（GB/T10190(IEC60384-16)）：1、使用温度：-40℃~105℃2、容量范围：0.001uF~0.1uF3、允许偏差：±5%(J),±10%(K)4、额定电压：800V、1000V、1250V、1600V、2000V5、耐电压：1.6UR,5sec6、损耗角：0.1%Max,at1KHzand20℃7、绝缘电阻：IR≥50000MΩCBB81电容用途：CBB81电容适用于节能灯、镇流器、彩电及电子整机、电子仪器高频、直容流、交流和大电流脉动电路，变频器突波吸收，IGBT保护电路

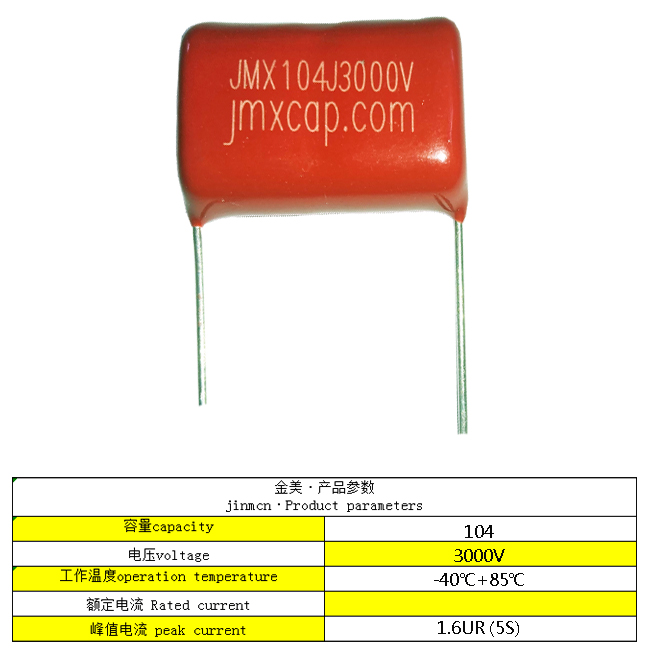

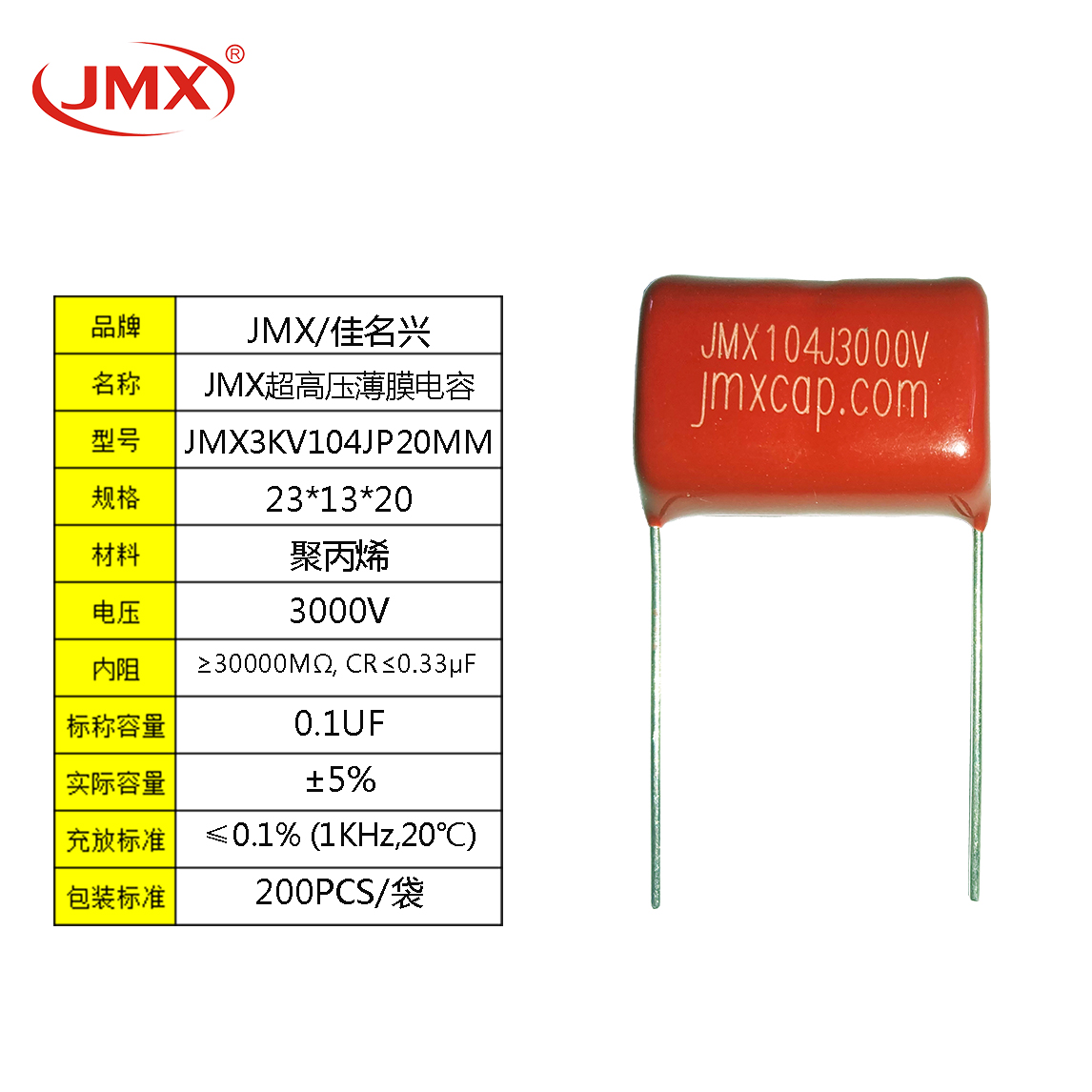

CBB81电容参数：

容量范围：0.001μF~1μF

允许偏差：±5%(J)、±10%(K)

额定电压：1000V、1600V、2000V、2500V、3000V

耐 电 压：2.0UR(2S)

损耗角正切：≤0.001 （20℃,1KHz）

绝缘电阻：≥25000MΩ CR≤0.33μF (20℃,1min) ≥7500S CR≤0.33μF (20℃,1min)

温度系数：-40℃~+120℃

The CBB81 capacitor is made of metalized polypropylene film as the dielectric, aluminum foil is wound without induction, epoxy resin encapsulation, and tin plated copper clad steel wire (CP wire) is radially led out. The difference between polypropylene capacitors and ordinary polypropylene capacitors is that polypropylene and aluminum foil are wound in series, which is also the reason why they can withstand high voltage.

CBB81 capacitor characteristics:

Due to its resistance to high voltage, high frequency, and high current, it has been widely used in various instruments, household appliances, and other household appliances. It can be used for DC pulsation and AC voltage reduction, especially suitable for various types of electronic rectifiers and energy-saving lamp circuits. It can also be used for high-voltage potential absorption circuits of various contactor contacts.

CBB81 capacitor is a type of thin film capacitor, which is a non-polar high-voltage metal polypropylene thin film dielectric high voltage capacitor

CBB81 capacitor, also known as high-voltage capacitor, absorption capacitor, and high-frequency capacitor

Using metalized polypropylene film as the medium, aluminum foil as the electrode, using non inductive winding, epoxy resin encapsulation, and tin plated copper clad steel wire (CP wire) with radial lead out

CBB81 capacitor has the characteristics of internal series structure, low high-frequency loss, strong overcurrent ability, high insulation resistance, long service life, stable temperature characteristics, and reduced loss angle tangent with increasing operating frequency

CBB81 capacitor, CBB thin film dielectric, non-polar;

CBB81 capacitor technical specifications: (GB/T10190 (IEC60384-16)): 1. Operating temperature: -40 ℃~105 ℃ 2. Capacity range: 0.001uF~0.1uF3. Permissible deviation: ± 5% (J), ± 10% (K) 4. Rated voltage: 800V, 1000V, 1250V, 1600V, 2000V5, withstand voltage: 1.6UR, 5sec6, loss angle: 0.1% Max, at1KHzand 20 ℃ 7. Insulation resistance: IR ≥ 50000M Ω CBB81 capacitor Usage: CBB81 capacitor is suitable for energy-saving lamps, ballasts, color televisions, electronic equipment, high-frequency, direct capacitance of electronic instruments Current, AC, and high current pulsation circuits, frequency converter surge absorption, IGBT protection circuits

CBB81 capacitor parameters:

Capacity range: 0.001 μ F~1 μ F

Permissible deviation: ± 5% (J), ± 10% (K)

Rated voltage: 1000V, 1600V, 2000V, 2500V, 3000V

Voltage withstand: 2.0UR (2S)

Loss tangent: ≤ 0.001 (20 ℃, 1KHz)

Insulation resistance: ≥ 25000M Ω CR ≤ 0.33 μ F (20 ℃, 1min) ≥ 7500S CR ≤ 0.33 μ F (20 ℃, 1 minute)

Temperature coefficient: -40 ℃~+120 ℃
