螺栓电解电容105℃ 铝电解电容厂家400V 450V 1000UF 高频低阻长寿命电容
Bolt electrolytic capacitor 105 ℃ aluminum electrolytic capacitor manufacturer 400V 450V 1000UF high-frequency low resistance long life capacitor

螺栓电解电容不仅适用于电路的滤波,而且还能用于电路中的降压、增压、调节电压、整流等工作。由于它结构紧凑,体积小,使用寿命长,能够提高系统的稳定性

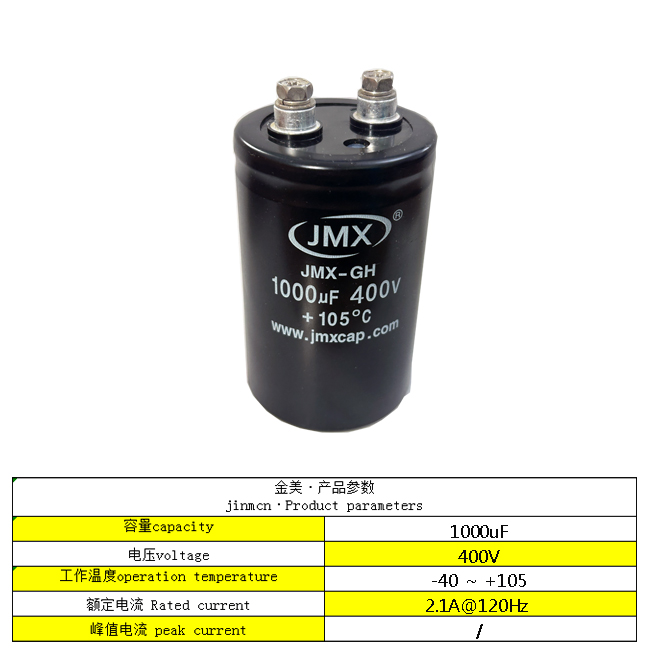

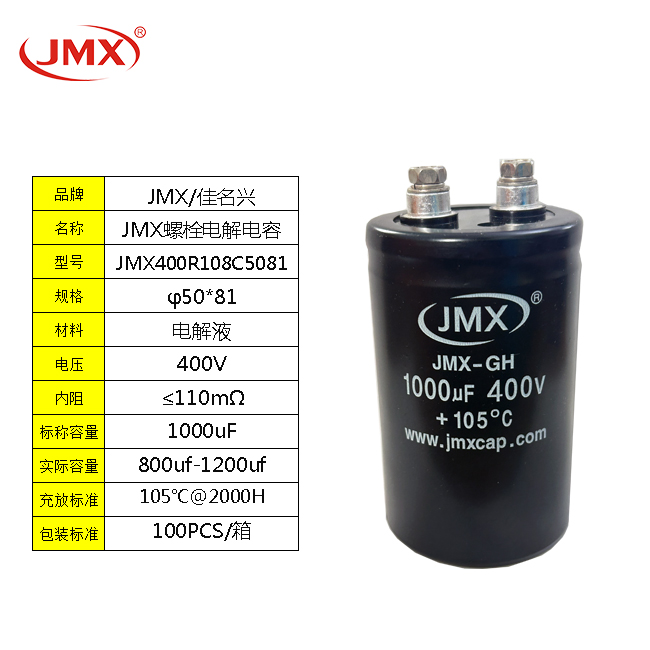

容量 capacity :1000UF
耐压 voltage : 400V/450V
误差 Accuracy error : ±10% ±20%
尺寸 size:51*80
额定频率 Rated frequency:50/60HZ
温度范围 temperature range :-40℃~+105℃

螺栓电解电容特点：
不需要焊接,可以实现快速的安装,连接紧凑,不易断裂,抗压性能好,耐温性强,对电路的热损耗小,电容量大,具有非常好的电性能

1.卓越的可靠性
2.优异的导热能力与高耐纹波电流能力
3.超长使用寿命
4.工作温度范围宽
5.全焊结构，确保可靠的电气接触性
6.可选PAPR型端子(极性颠倒保护)
7.可选底部散热结构优化型(散热板安装)
8.可选低感抗型

螺栓电解电容应用：
螺栓型电解电容器由于其工作原理，具有许多特点，使得它们在许多领域都有应用。
1.常用于供电电路中，用来稳定电压和电流，并帮助消除高频干扰。
2.在音频放大器中使用，可以提供良好的音质和动态范围。
3.在交流电机或变频器系统中使用，可以帮助消除电机振动和电感电流噪音。
4.在各种高频滤波器中使用，可用于抑制高频噪声和交流波纹。
5.在电源回路和直流电路中使用，可有效稳定电压和电流。

Characteristics of bolt electrolytic capacitors:

No welding required, fast installation can be achieved, with compact connections, not easily broken, good compressive performance, strong temperature resistance, low heat loss to the circuit, large capacitance, and excellent electrical performance

1. Excellent reliability

2. Excellent thermal conductivity and high resistance to ripple currents

3. Long service life

4. Wide working temperature range

5. Fully welded structure to ensure reliable electrical contact

6. Optional PAPR type terminals (polarity reversal protection)

7. Optional bottom heat dissipation structure optimization type (heat dissipation plate installation)

8. Optional low sensitivity type

Application of bolt electrolytic capacitors:

Bolt type electrolytic capacitors have many characteristics due to their working principle, making them applicable in many fields.

1. Commonly used in power supply circuits to stabilize voltage and current, and to help eliminate high-frequency interference.

2. When used in audio amplifiers, it can provide good sound quality and dynamic range.

3. When used in AC motors or frequency converter systems, it can help eliminate motor vibration and inductor current noise.

4. It can be used in various high-frequency filters to suppress high-frequency noise and AC ripple.

5. It can effectively stabilize voltage and current when used in power circuits and DC circuits.
